Wacker Neuson ET08 Mini Excavator – Compact Tracked Diesel Excavator
The Wacker Neuson ET08 mini excavator is a compact tracked diesel excavator designed for professional construction, landscaping, groundwork, renovation and confined-access excavation applications.
With a hydraulically adjustable undercarriage from 700mm to 860mm, the ET08 combines narrow-access capability with additional stability when the tracks are extended.
Its compact design makes it particularly useful for restricted-access construction sites, garden projects, property renovations and other locations where larger excavators may be difficult to position.
Powered by a three-cylinder Yanmar diesel engine, the ET08 provides dependable hydraulic performance for digging, trenching and suitable attachment-powered applications.
The machine also features rubber tracks, a folding ROPS safety bar, a dozer blade and standard auxiliary hydraulics, making it a versatile choice for a wide range of professional tasks.
Configuration note: Specifications and equipment may vary by country, production version and selected options. The technical details below follow the manufacturer's UK technical specification. Confirm the exact machine configuration, attachments and engine specification before ordering.
Compact Dimensions with Professional Digging Performance
The Wacker Neuson ET08 is designed to provide useful excavation capability in areas where machine width, transport dimensions and site access are important considerations.
700–860mm
Adjustable track width
1,766mm
Maximum digging depth
9.9kW
UK-listed engine output
1,029–1,115kg
Operating weight range
With a maximum digging depth of approximately 1.76 metres and an operating weight of approximately 1.0 to 1.1 tonnes, the ET08 is suitable for a range of smaller excavation and groundwork projects.
Hydraulic Telescopic Undercarriage – 700mm to 860mm
One of the main advantages of the Wacker Neuson ET08 is its hydraulically telescoping undercarriage.
The track width can be reduced to 700mm for access through narrow routes and extended to 860mm to provide a wider operating stance.
This flexibility is particularly valuable on construction sites with restricted access, residential landscaping projects and renovation work where space is limited.
700mm Retracted Width
Narrow track configuration
helps the excavator travel
through restricted-access areas.
860mm Extended Width
The wider track position
provides an increased stance
for suitable excavation operations.
Dozer Blade Extensions
Foldable blade extensions
allow the blade configuration
to be adapted alongside
the adjustable undercarriage.
Access measurement: Although the retracted track width is 700mm, the manufacturer's dimensional information lists an upper carriage width of 730mm. Check the complete machine clearance, including height and attachments, before planning access through doorways or narrow passages.
Yanmar Three-Cylinder Diesel Engine
The UK technical specification lists the ET08 with a Yanmar 3TNV70 three-cylinder diesel engine.
This engine has a displacement of 854cc and a listed effective output of 9.9kW at a nominal engine speed of 2,100rpm.
The water-cooled diesel engine provides power for the machine's travel and hydraulic systems, supporting digging, grading and compatible attachment operations.
The manufacturer's UK standard equipment information identifies the engine as a Stage V configuration.
Engine specification: Wacker Neuson's general ET08 overview also refers to an 11.6kW Yanmar engine. The UK technical data and standard components identify a 9.9kW Yanmar 3TNV70 version. Engine specifications must be confirmed for the particular machine being supplied.
Auxiliary Hydraulics for Versatile Excavation Work
The Wacker Neuson ET08 features standard one-way auxiliary hydraulics, providing the ability to operate suitable hydraulic attachments.
The manufacturer's listed hydraulic specifications include an operating pressure of 170 bar and a hydraulic flow rate of 23 litres per minute.
This gives the ET08 the flexibility to support tasks beyond conventional bucket excavation, subject to the compatibility of the selected attachment.
A two-way auxiliary hydraulic configuration is available through certain equipment or edition arrangements for applications requiring bidirectional hydraulic operation.
Attachment compatibility: Buckets, hydraulic breakers and other attachments must be matched to the machine's hydraulic output, mounting arrangement and permitted operating limits. Do not assume attachments are included with the base machine.
Folding ROPS Safety Bar and Compact Transport Design
The ET08 incorporates a folding ROPS (Roll-Over Protective Structure) safety bar.
The ROPS can be folded in accordance with the manufacturer's instructions to reduce the machine's height for suitable low-clearance transport or access situations.
The manufacturer's UK technical data lists a machine height of 2,261mm and a shipping height of 1,490mm.
Its compact dimensions and relatively low weight can simplify movement between work sites when suitable transport equipment is available.
Transport requirements: Always verify the machine's actual transport weight, attachments, trailer capacity, towing vehicle limits and applicable road regulations. The ROPS must be used in the correct operating position as specified by the manufacturer.

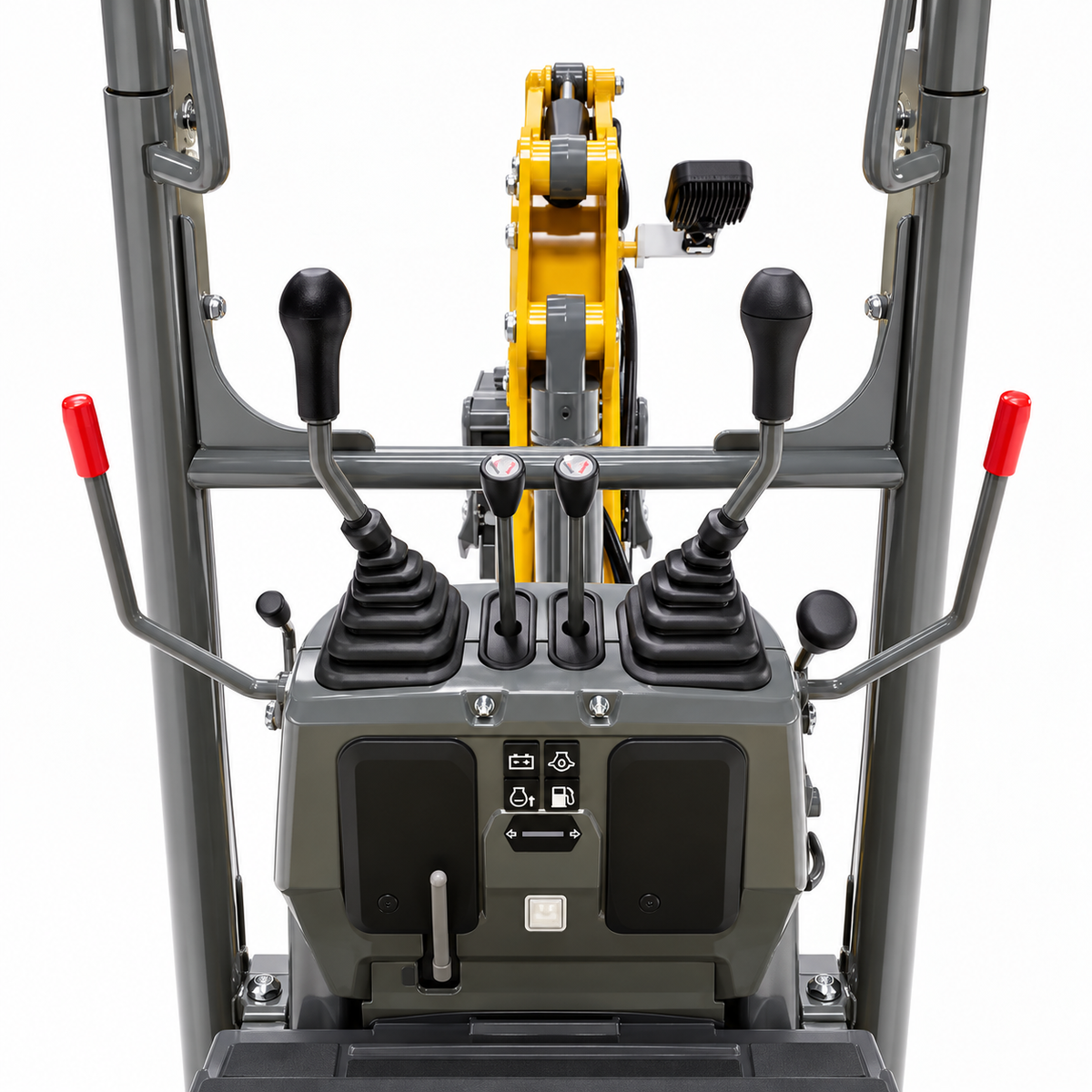

Operator Controls, Rubber Tracks and Easy Maintenance
The Wacker Neuson ET08 includes several practical features intended to support everyday professional use.
ISO / SAE Control Selection
Switchable control patterns
allow the operator to select
the appropriate control logic
according to training
and operating preference.
Rubber Tracks
Rubber tracks support
movement across suitable
site surfaces and can help
reduce marking compared
with steel tracks.
Accessible Maintenance Points
The machine is designed
with accessible service points
to support routine inspection
and maintenance.
Additional manufacturer-listed standard equipment includes an adjustable operator's seat, boom-mounted working light and a dozer blade.
Wacker Neuson ET08 Key Features and Benefits
- Compact tracked mini excavator
- Hydraulic telescopic undercarriage
- Adjustable track width from 700mm to 860mm
- Maximum digging depth of approximately 1.76m
- Three-cylinder Yanmar diesel engine
- 9.9kW effective output in UK technical data
- Standard one-way auxiliary hydraulics
- Hydraulic pressure of 170 bar
- Hydraulic flow rate of 23L/min
- Folding ROPS safety bar
- Rubber tracked undercarriage
- Dozer blade with extensions
- ISO / SAE control pattern selection
- Compact design for restricted-access work
- Boom-mounted working light
- Adjustable operator's seat
- Accessible routine maintenance points
- Suitable for compatible hydraulic attachments
Suitable Applications
The Wacker Neuson ET08 compact mini excavator is particularly useful for projects where working space and machine access are limited.
- Construction and building sites
- Residential groundwork
- Garden excavation
- Landscaping projects
- Small trenching operations
- Drainage preparation
- Foundation preparation
- Property renovation
- Restricted-access excavation
- Agricultural maintenance
- Ground levelling and grading
- Suitable attachment-powered tasks
Important: This is a diesel-powered machine. Do not operate it in enclosed or inadequately ventilated spaces because engine exhaust contains hazardous gases, including carbon monoxide. Narrow-access capability does not mean that indoor operation is safe.
Wacker Neuson ET08 Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Wacker Neuson |
| Model | ET08 |
| Machine Type | Tracked conventional mini excavator |
| Engine Manufacturer | Yanmar |
| UK-Listed Engine Model | 3TNV70 |
| Engine Type | Three-cylinder diesel |
| Engine Cooling | Water-cooled |
| Engine Displacement | 854cc |
| Effective Engine Power | 9.9kW – UK technical specification |
| Nominal Engine Speed | 2,100rpm |
| Fuel Type | Diesel |
| Fuel Tank Capacity | 9 litres |
| Operating Weight | 1,029–1,115kg |
| Shipping Weight | 990kg |
| Maximum Digging Depth | 1,766mm |
| Retracted Track Width | 700mm |
| Extended Track Width | 860mm |
| Machine Length | 2,850mm |
| Machine Height | 2,261mm |
| Shipping Width | 730mm |
| Shipping Height | 1,490mm |
| Travel Speed | 1.8km/h |
| Superstructure Turning Speed | 8rpm |
| Bucket Breakout Force | 8.9kN |
| Lift Arm Breakout Force | 4.5kN |
| Hydraulic Operating Pressure | 170 bar |
| Hydraulic Flow Rate | 23L/min |
| Hydraulic Tank Capacity | 14 litres |
| Hydraulic Fluid Volume | 13.8 litres |
| Cooling Fluid Volume | 2.9 litres |
| Starter Battery Voltage | 12V |
| Starter Battery Capacity | 30Ah |
| Standard Auxiliary Hydraulics | One-way |
| ROPS | Folding safety bar |
| Track Type | Rubber tracks |
Specification notice: Figures are based on Wacker Neuson's published UK ET08 technical data. Machine dimensions, weights, engine configuration and equipment can vary depending on the version and selected options.
Manufacturer-Listed Standard Equipment
Wacker Neuson's UK product information identifies the following standard machine components.
- Rubber tracked undercarriage
- Hydraulic telescopic chassis with dozer blade extensions
- Dozer blade
- Folding ROPS safety bar
- Adjustable operator's seat
- Boom-mounted working light
- One-way auxiliary hydraulic connections
- Mechanical lever controls
- Operator's instructions
Ordering information: This list describes the manufacturer's published standard machine equipment, not a confirmed sales package. Bucket sizes, quick couplers, hydraulic attachments and other accessories must be confirmed separately.
Attachments and Configuration Options
The ET08 can be configured for different working requirements through suitable attachments and hydraulic arrangements.
The standard one-way auxiliary hydraulic system supports compatible applications, while certain configurations provide two-way auxiliary hydraulics for attachments requiring hydraulic movement in both directions.
Wacker Neuson's UK information identifies an Edition A configuration with double-acting auxiliary hydraulics and a flat-sealing coupling.
Always confirm the availability of the required machine edition, attachment compatibility and equipment specification before ordering.
Why Choose the Wacker Neuson ET08?
The Wacker Neuson ET08 mini excavator is designed for operators who need a compact machine without sacrificing useful excavation and hydraulic capability.
Its adjustable track width makes it particularly practical on restricted-access sites, while the extended undercarriage provides a wider stance when operating conditions permit.
The Yanmar diesel engine, standard auxiliary hydraulics, dozer blade and rubber tracks support a wide range of professional applications.
The folding ROPS design, compact dimensions and accessible maintenance points also make the ET08 a practical option for contractors who regularly move between smaller work sites.
Safe Operation and Site Considerations
- Operate only with appropriate training and authorisation
- Follow the manufacturer's operating instructions
- Use the ROPS and seat belt as specified
- Keep personnel outside the machine's operating area
- Check for underground utilities before excavation
- Confirm ground conditions and excavation stability
- Follow safe lifting limits and attachment requirements
- Use suitable ventilation and exhaust controls
- Check machine and attachment condition before operation
- Follow approved transport and load-securing procedures
Diesel exhaust warning: Never run the excavator in enclosed or inadequately ventilated spaces. Diesel exhaust can contain carbon monoxide and other hazardous substances. Always assess the work site before operating the machine.
Frequently Asked Questions
What is the Wacker Neuson ET08?
The Wacker Neuson ET08 is a compact tracked diesel mini excavator designed for excavation, landscaping, groundwork and restricted-access construction applications.
How wide is the Wacker Neuson ET08?
The hydraulic telescopic undercarriage adjusts from 700mm when retracted to 860mm when extended. Other machine components may be wider than the tracks.
How deep can the ET08 dig?
The manufacturer's UK technical specification lists a maximum digging depth of 1,766mm, approximately 1.76 metres.
What engine does the ET08 use?
The UK technical data lists a Yanmar 3TNV70 three-cylinder diesel engine with an effective output of 9.9kW. Other ET08 information refers to an 11.6kW engine, so confirm the exact version being supplied.
How much does the Wacker Neuson ET08 weigh?
The UK specification lists an operating weight between 1,029kg and 1,115kg, depending on configuration. The listed shipping weight is 990kg.
Does the ET08 have an adjustable undercarriage?
Yes. Its hydraulically adjustable undercarriage can be narrowed for restricted access and widened to provide a broader operating stance.
Does the ET08 have auxiliary hydraulics?
Yes. Standard one-way auxiliary hydraulics are provided. Two-way hydraulic configurations are available through certain equipment arrangements.
Can the ET08 operate a hydraulic breaker?
The manufacturer's product information identifies hydraulic breaker operation as an application for the auxiliary hydraulics. The breaker must be compatible with the machine's hydraulic flow, pressure and mounting system.
Does the Wacker Neuson ET08 have a folding ROPS bar?
Yes. The ET08 features a folding Roll-Over Protective Structure. Follow the manufacturer's instructions for its correct operating and transport positions.
Does the ET08 have rubber tracks?
Yes. Rubber tracks are included in the manufacturer's listed standard equipment.
Is the ET08 suitable for landscaping?
Yes. Its compact dimensions, adjustable undercarriage and excavation capability make it suitable for a range of landscaping, garden groundwork and restricted-access projects.
Can the ET08 be used indoors?
The ET08 is diesel powered and must not be operated in enclosed or inadequately ventilated spaces. Its narrow width does not remove the risks associated with diesel exhaust.
Are buckets and attachments included?
The supplied manufacturer information does not establish a specific bucket or attachment package. Confirm the required buckets, couplers and hydraulic attachments when requesting a quotation.
Where can I enquire about the Wacker Neuson ET08 in Ireland?
Contact Daly Industrial Supply on 021 450 0051 to discuss the ET08 specification, suitability for your application and pricing or availability enquiries.
Enquire About the Wacker Neuson ET08 Mini Excavator
Looking for a compact mini excavator for construction, landscaping or restricted-access groundwork?
The Wacker Neuson ET08 combines a hydraulically adjustable 700–860mm undercarriage, approximately 1.76m digging depth, Yanmar diesel power and auxiliary hydraulics in a compact tracked machine.
Contact Daly Industrial Supply in Cork to discuss the machine's specification, attachment requirements, pricing and availability.
Call our sales team: 021 450 0051
Model: Wacker Neuson ET08. Machine Type: Mini Excavator. Track Width: 700–860mm. Maximum Digging Depth: 1,766mm.
